Highest Performance
Powertrains, Onshored

Powertrains & motors for robots, data centers, and mobility — independent of foreign supply chains, and double the performance per cost.

We need billions of
powertrains
to
create the future.

Conifer axial-flux motor architecture

So we built the best one and onshored it.

Full-stack innovation,
massive outcomes.

Materials
0%
Rare earths

Using globally abundant magnets. No foreign dependency.

Architecture
2×
Torque / mass

Proprietary axial-flux architecture and stator design halves active material.

Manufacturing
1/10th
CapEx

A high-speed, low-cost winding process. Many SKUs run on the same line.

Products

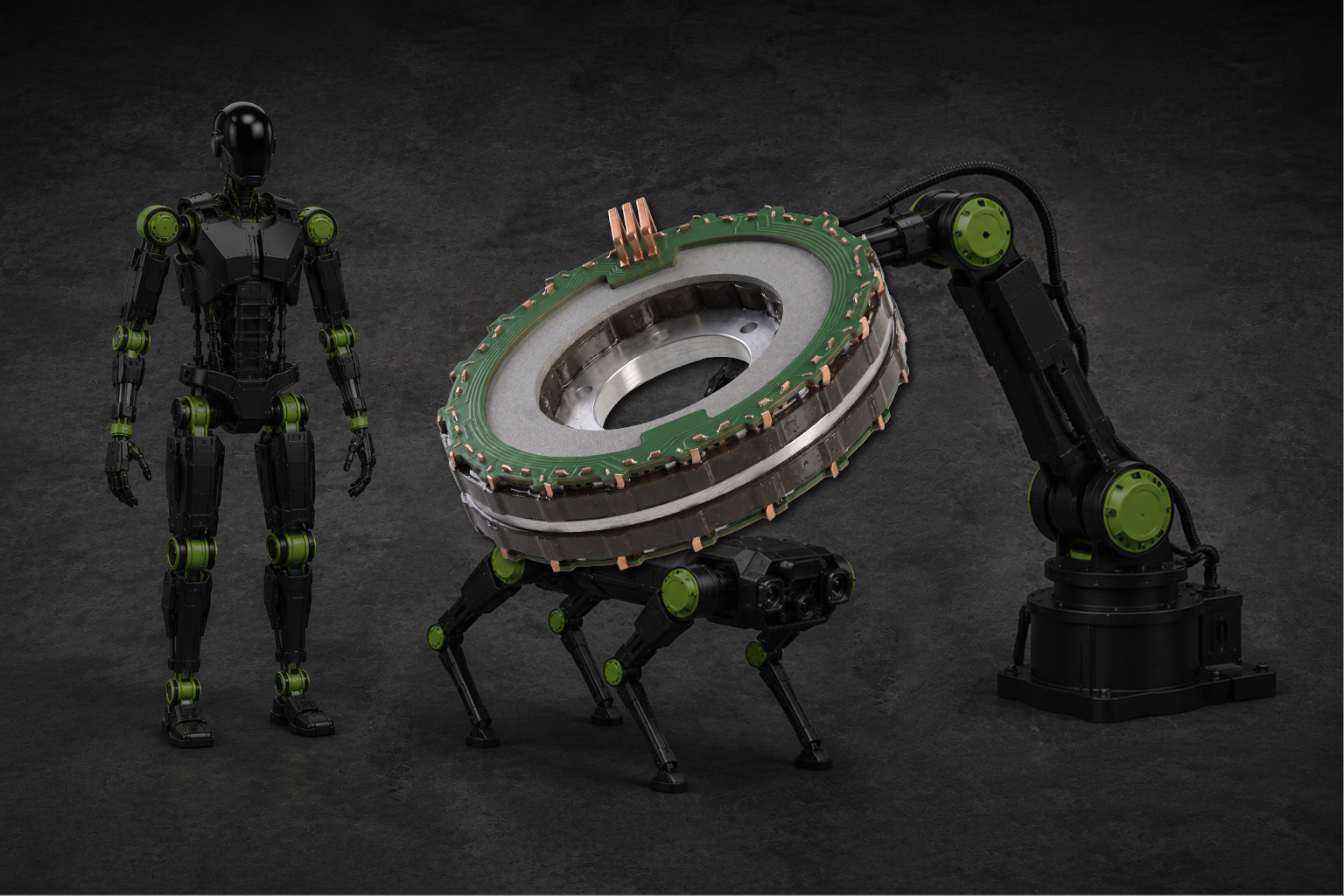

High-Torque Robot Actuators

  • +100% motor constant/mass
  • -50% inertia
  • 2X torque
Request a spec sheet

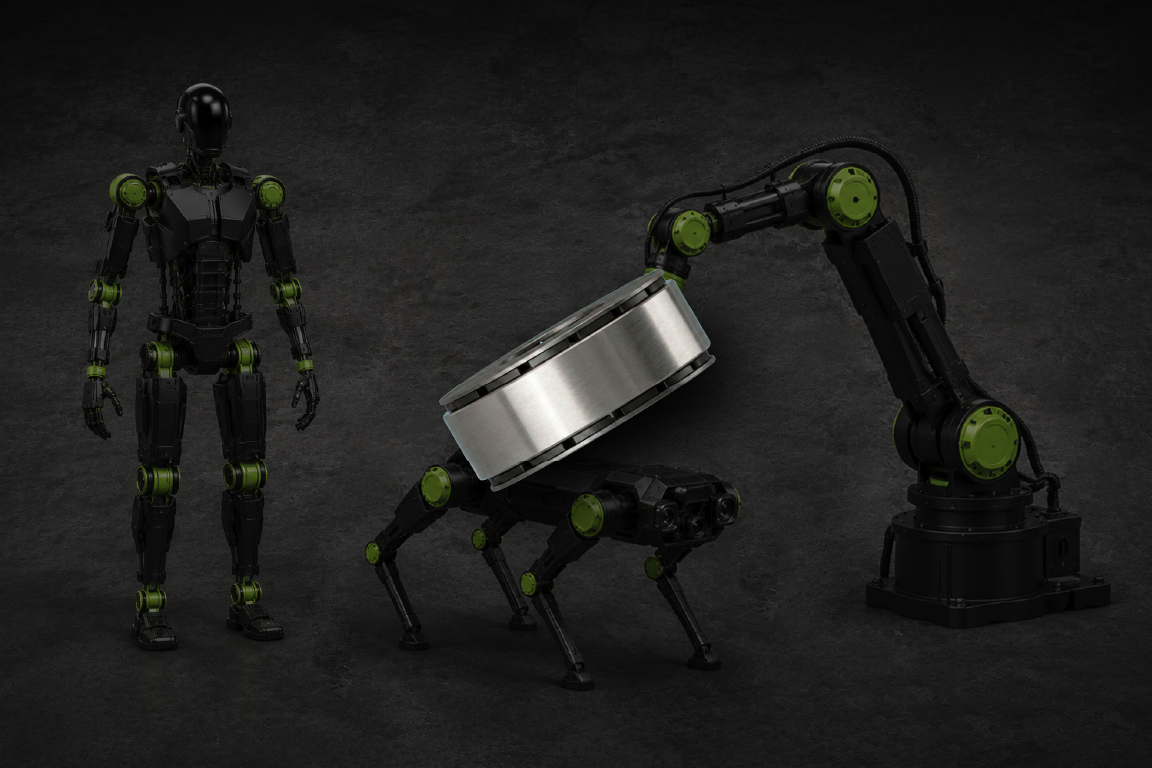

Conifer high-torque robot actuator
Parameter
CTM-58
CTM-72
CTM-83
Rated torque
0.6 Nm
1.3 Nm
2.0 Nm
Peak torque
2.4 Nm
5.1 Nm
10.0 Nm
Motor constant
0.155 Nm/√W
0.268 Nm/√W
0.34 Nm/√W
Rotor inertia
0.09 kg·cm²
0.32 kg·cm²
0.38 kg·cm²
Potted mass
114 g
182 g
233 g
Outer diameter
58 mm
72 mm
83 mm
Length
16 mm
18 mm
16 mm

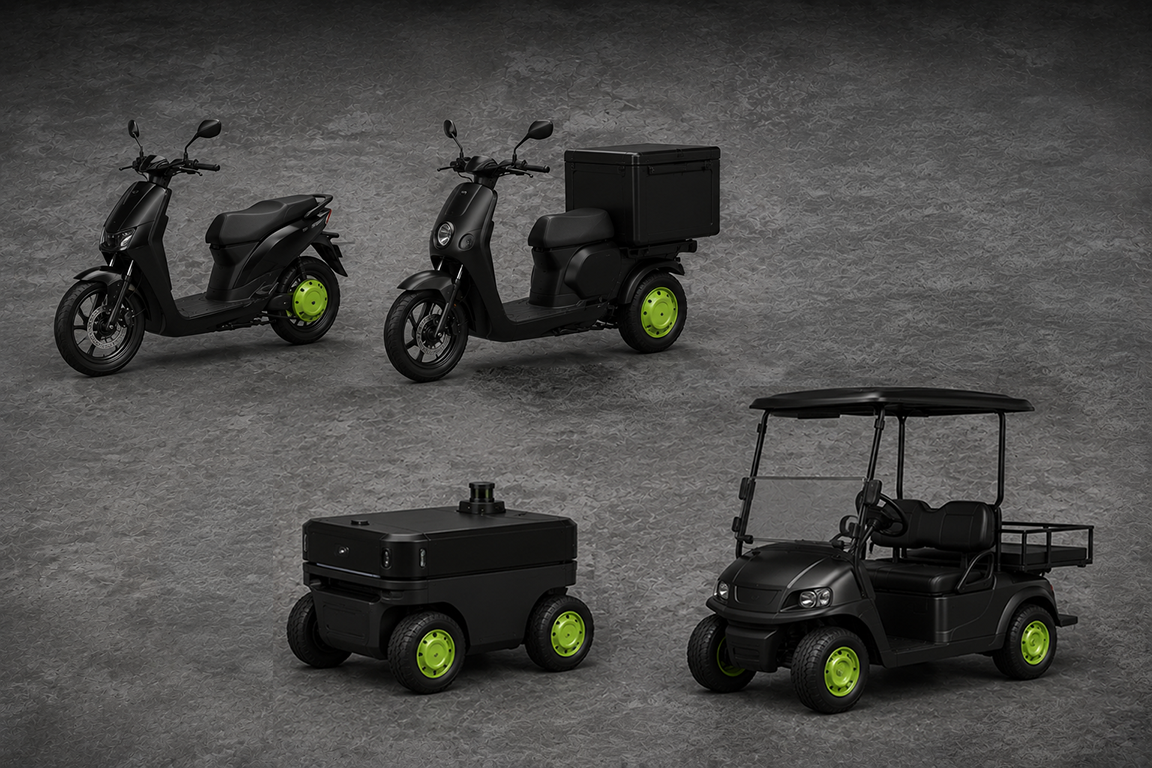

In-Wheel Geared Powertrains

  • 0% rare earth
  • +15% increase in range
  • Drop-in replacement across 10″–24″
Request a spec sheet

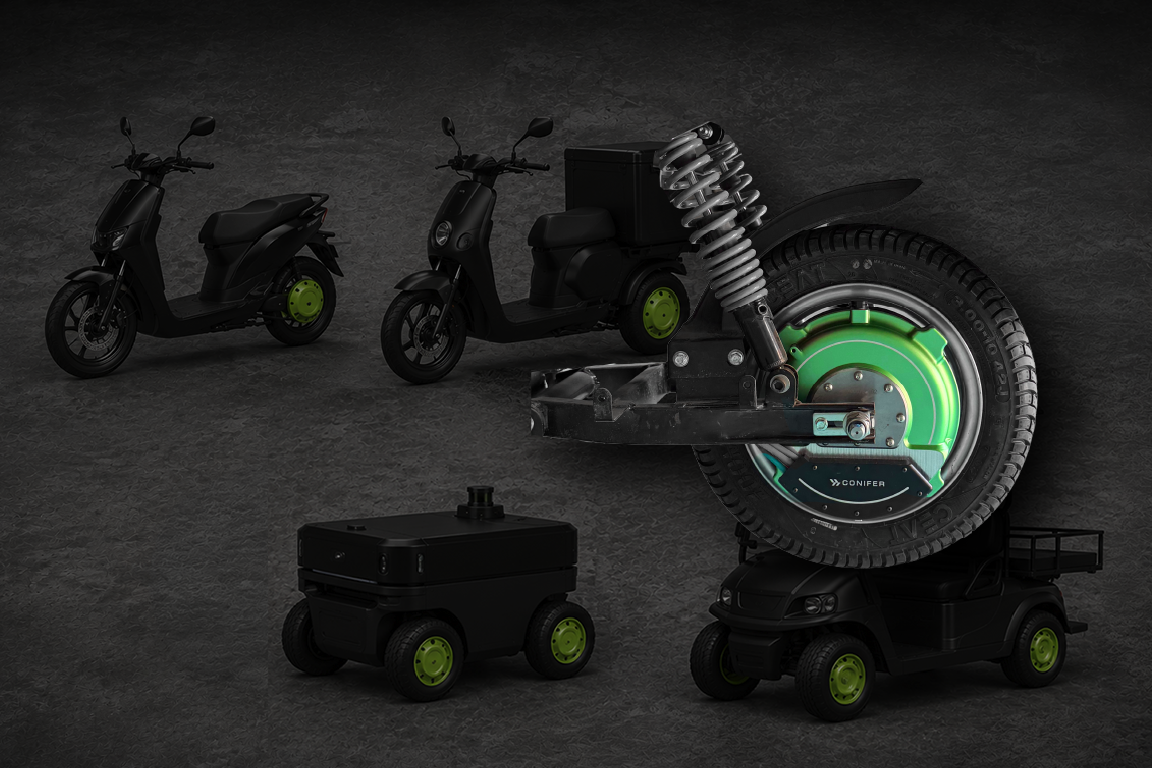

Conifer in-wheel geared powertrain
Parameter
Config A
Config B
Config C
Peak power
2.5 kW
5.5 kW
9 kW
Peak torque
120 Nm
190 Nm
190 Nm
Max RPM
850
960
960
Peak efficiency
90%
91%
91%

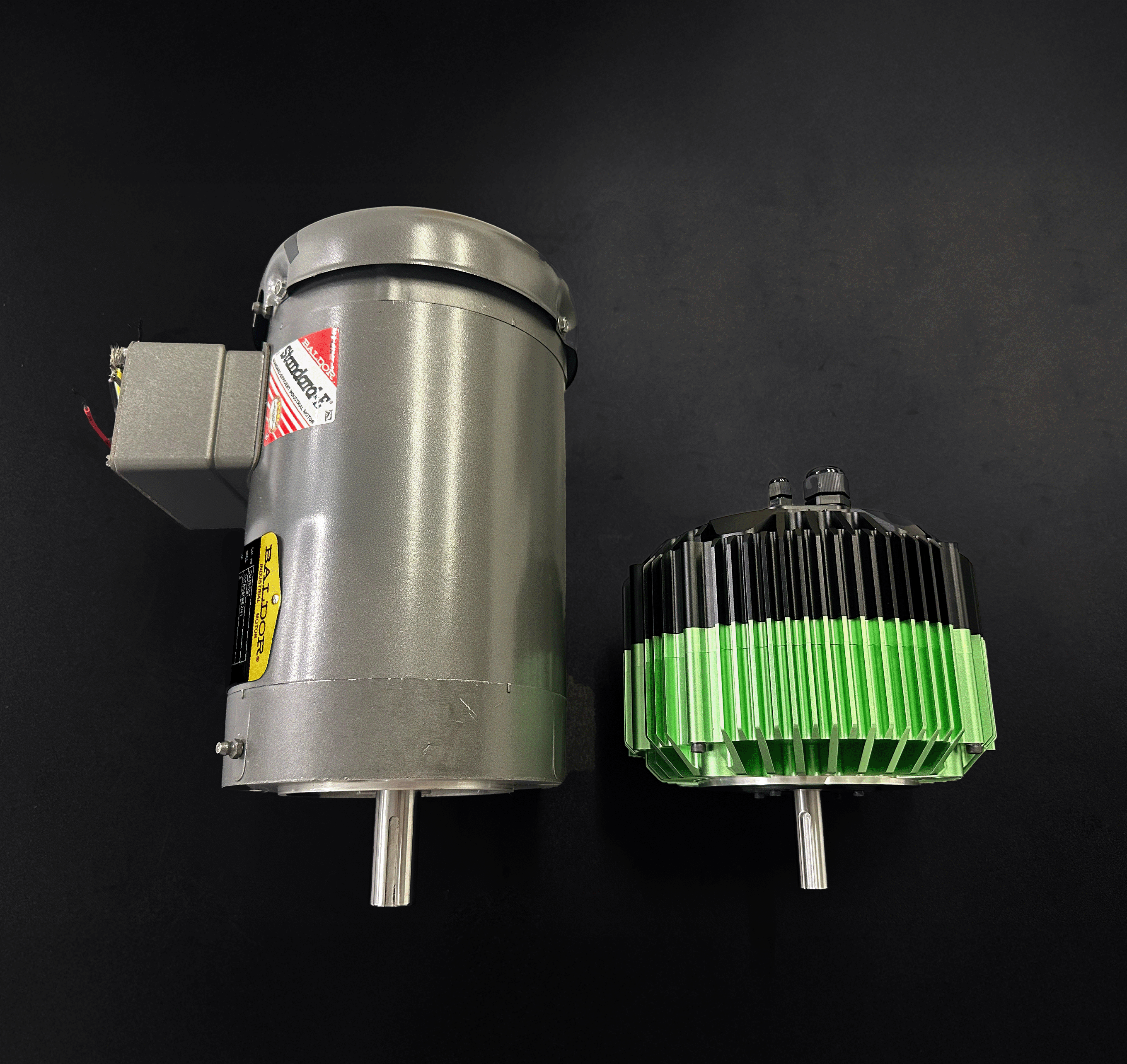

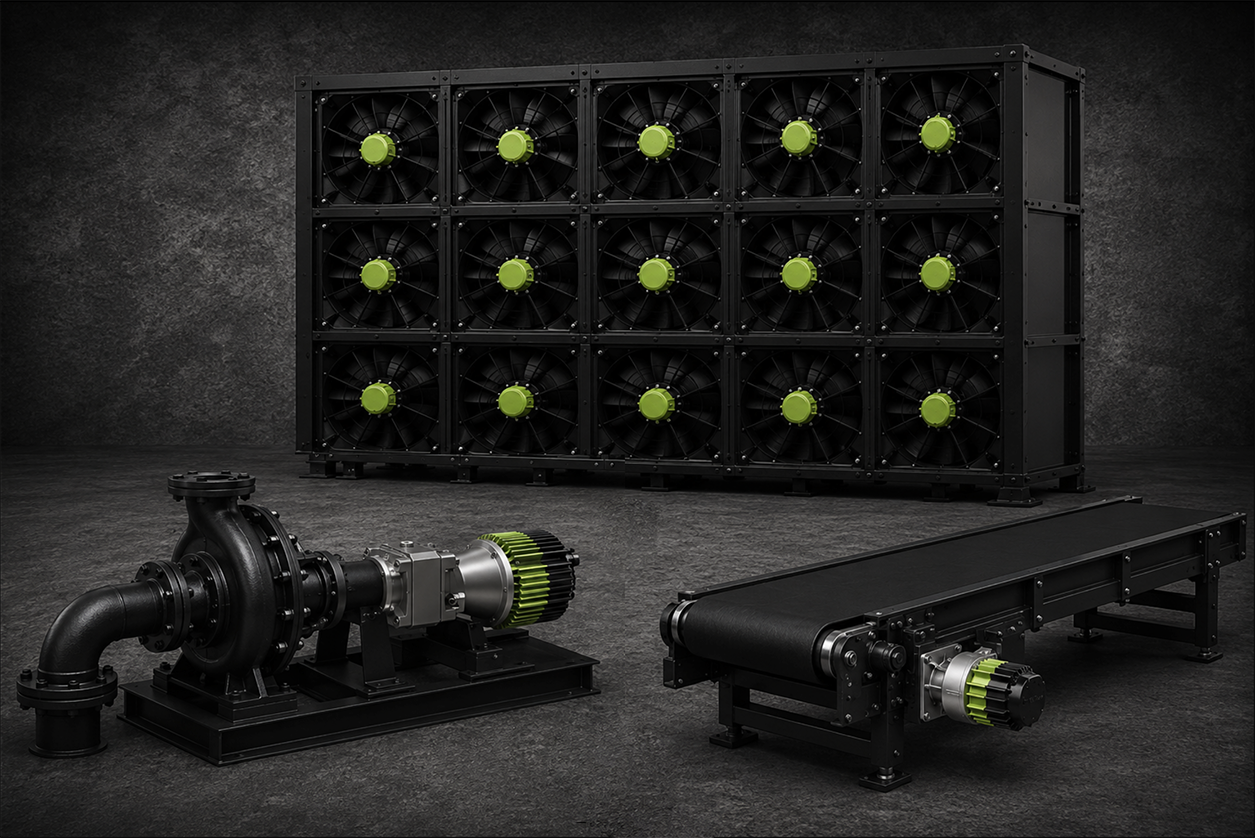

Data Center & HVAC Motors

  • 0% rare earth
  • −50% length and weight
  • IE8 efficiency
Request a spec sheet

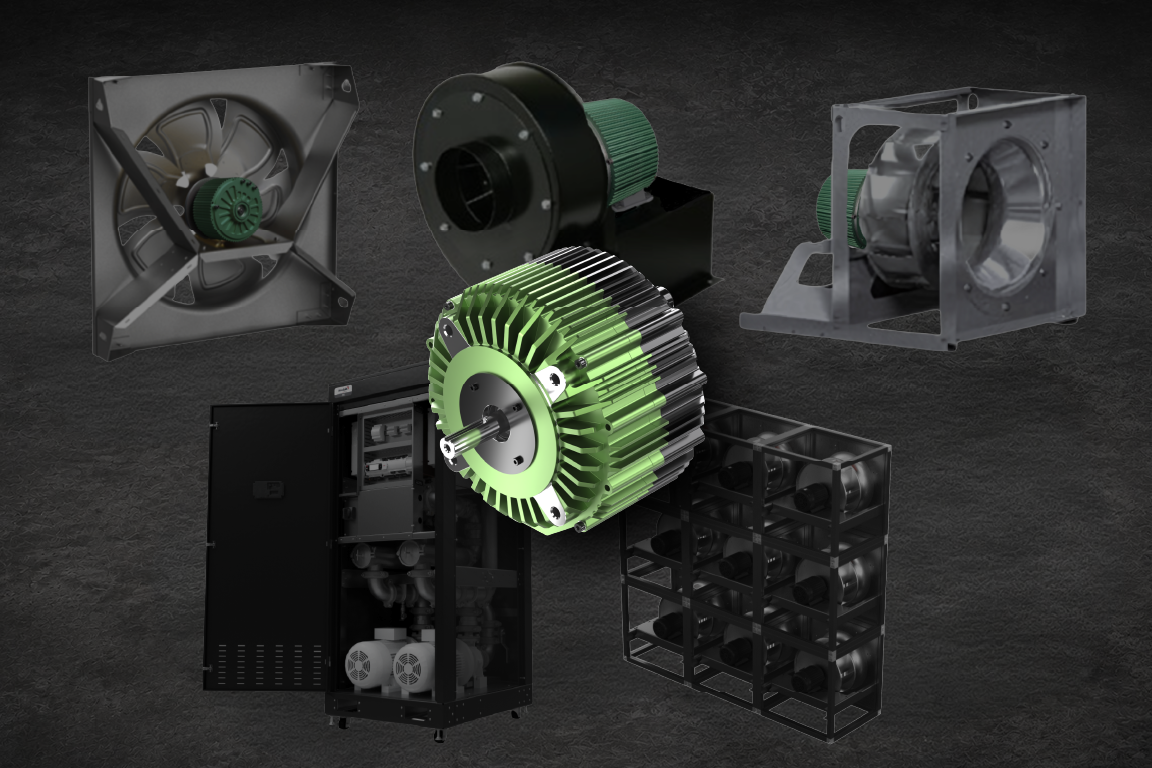

Conifer NEMA EC motor for data center and HVAC
Parameter
1.5 HP
3 HP
7.5 HP
Rated torque
3.0 Nm
5.9–12 Nm
14.8–29.7 Nm
Rated speed
3600
1800–3600
1800–3600
Efficiency
91.6%
92%
93.5%
10+
Customers
70,000
Units / year capacity
15,000 kms
Customer field testing
$20M
Funding
Backed by
Investor logo Investor logo Investor logo Investor logo Investor logo Investor logo

We've done this before.

4+ motor platforms · 60+ combined patents

Ankit Somani

Ankit Somani

Co-Founder
  • 2× Founder
  • Google Data Center R&D
LinkedIn →
Yateendra Deshpande

Yateendra Deshpande

Co-Founder
  • Powertrains at Lucid, Apple
  • PhD, Motors — taught at TAMU
LinkedIn →

…and 30+ world-class engineers and industry experts from:

Apple Company Lucid GM Genesis

Get yours!

Tell us what you're building and your performance targets. Our Eng team will reply directly with the best match.

Thanks — your request is in. Engineering will be in touch shortly.

The future of motion, together.
