NEMA Electronically Commutable Motors
0.5hp to 10hp IE5 nema Motors
IE5 EC Motors that fit in NEMA frames
Our stackable Axial Flux technology allows for shrinking axial length and weight by over 50%, while increasing efficiency to IE5+. Get the value of an EC Motor, at the cost of an Induction Machine.
Super Compact & Lightweight
Over 50% reduction in weight and length. Reduces the Fan, Pump or air handling unit size
Drop-in replacement for the same NEMA frames
If you are designed in for an Induction machine, these motors will be a drop in with frame or foot mounting
Localized Supply Chain
ABC supply chain and manufacturing. Uses cost-effective Ferrite Magnets
Applications
These motors are very versatile and can be utilized across multiple applications
Key Specifications

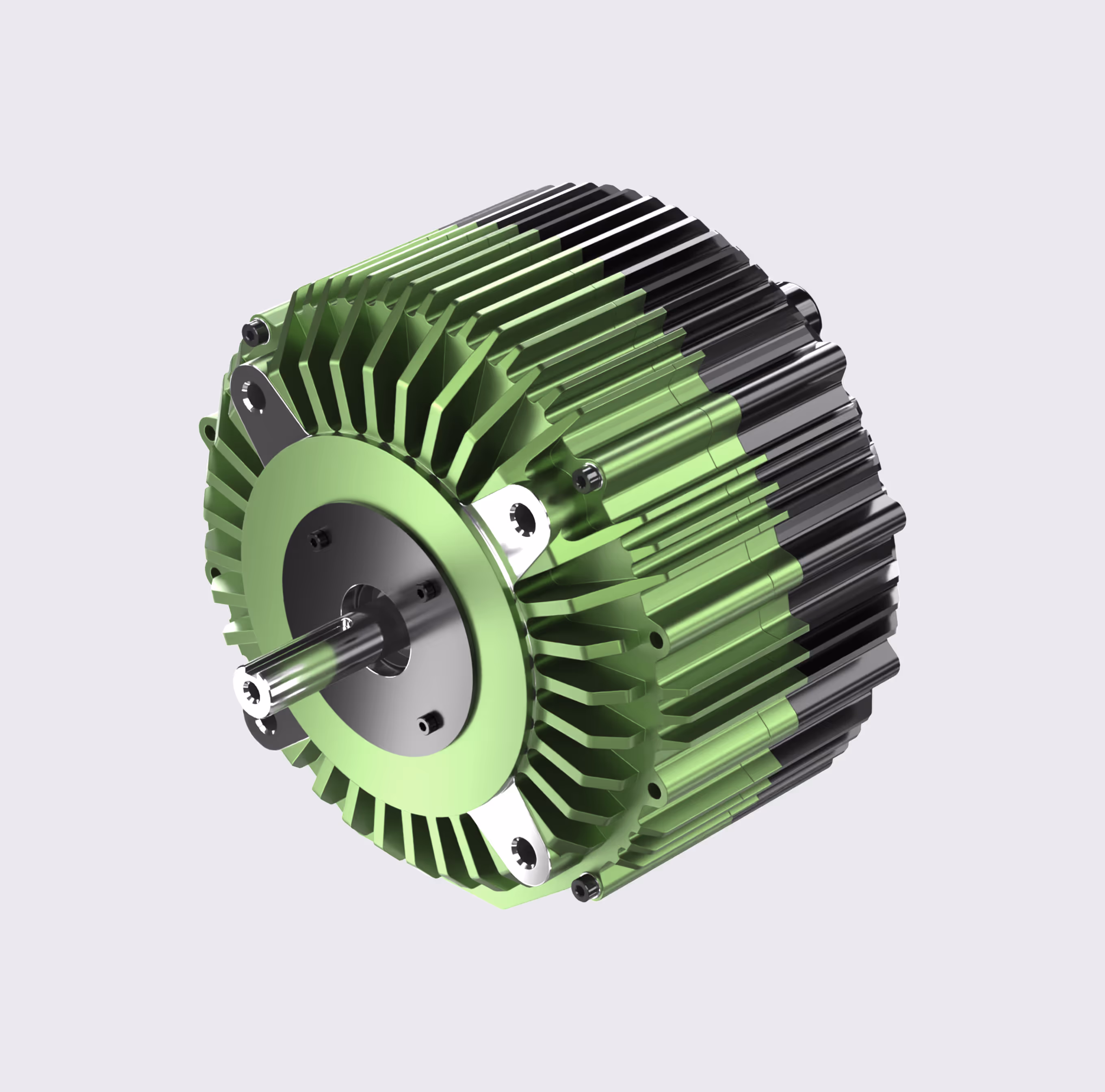

Application
HVAC & Pumping, Industrial Automation, Robotics, Medical
Rated Power (S1 duty Cont.)
1.5 hp / 1.1 kW
Rated Torque (Nm)
3
Rated RPM+
3600
Max RPM
5000
Min RPM
200
IP55 Efficiency (IE5)*
87.8%
Voltage (3ph)
230/460
Weight (kg)
<10
Dimensions (mm)
L: 135 D: 193
NEMA Frame
56C, J & Foot mount
Cooling
TENC
Noise
<50 dBA
Drive
VFD that supports PMSM
IP
IP55
Join waitlist

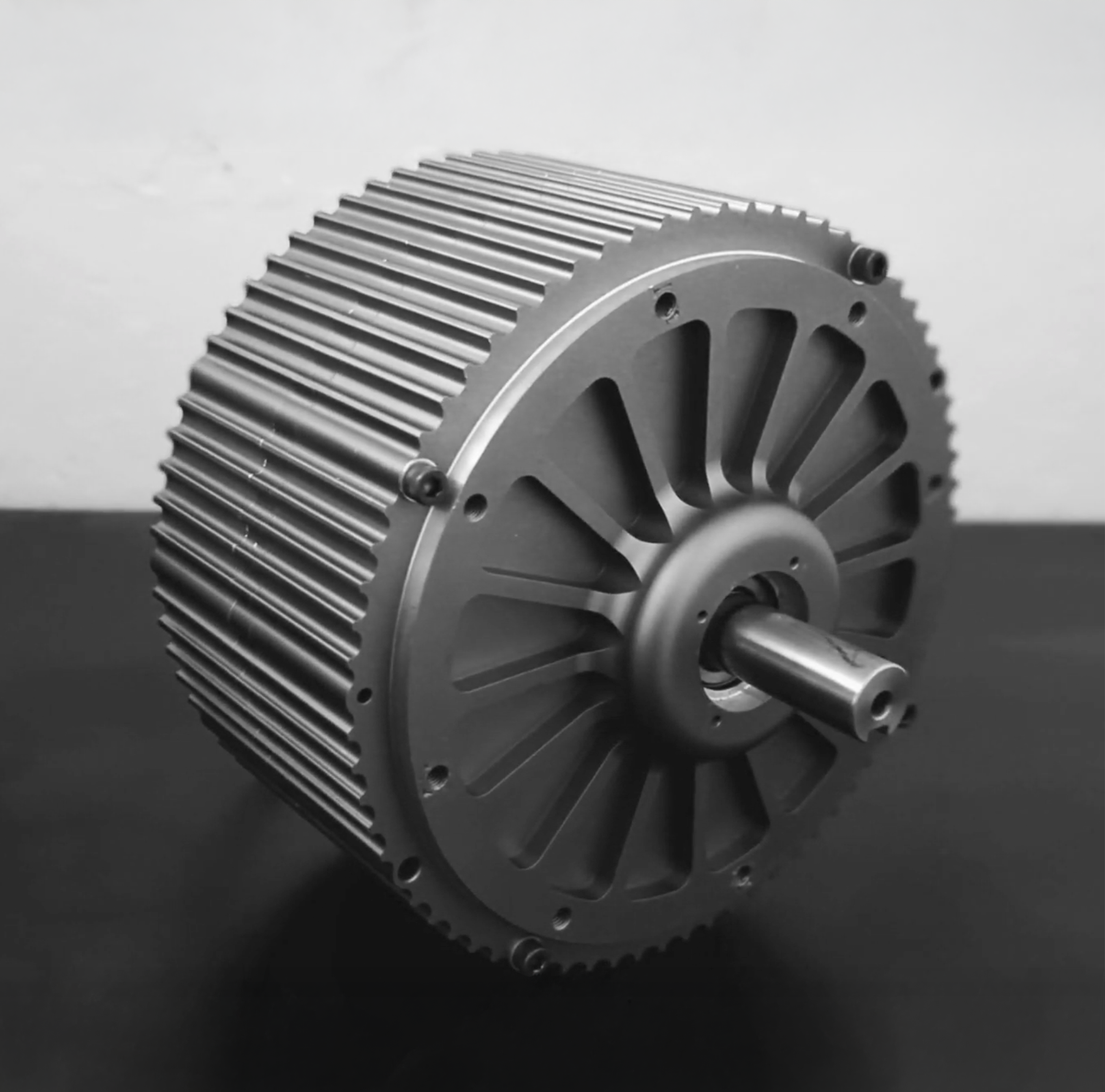

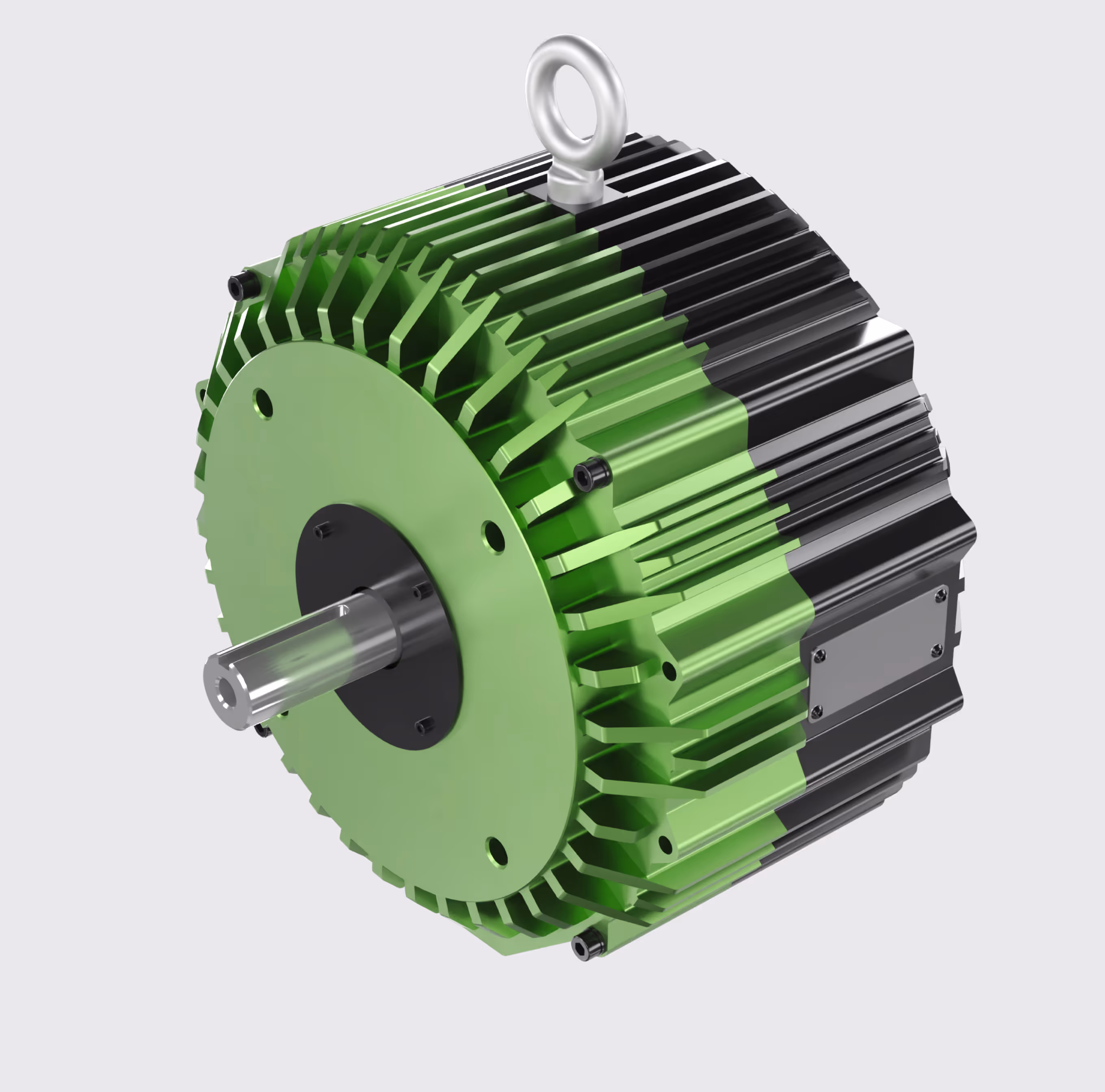

Application
HVAC & Pumping, Industrial Automation, Robotics, Medical
Rated Power (S1 duty Cont.)
5 hp / 3.7 kW
Rated Torque (Nm)
9.9
Rated RPM+
3600
Max RPM
5000
Min RPM
200
IP55 Efficiency (IE5)*
91.1%
Voltage (3ph)
230/460
Weight (kg)
26
Dimensions (mm)
L: 178 D: 235
IEC Frame
100
Cooling
TENC
Noise
<50 dBA
Drive
VFD that supports PMSM
IP
IP55
JOIN WAITLIST
Application
HVAC & Pumping, Industrial Automation, Robotics, Medical
Rated Power (S1 duty Cont.)
10 hp / 7.5 kW
Rated Torque (Nm)
19.8
Rated RPM+
3600
Max RPM
5000
Min RPM
200
IP55 Efficiency (IE5)*
92.4%
Voltage (3ph)
230/460
Weight (kg)
51
Dimensions (mm)
L: 221 D: 280
IEC Frame
132
Cooling
TENC
Noise
<50 dBA
Drive
VFD that supports PMSM
IP
IP55
JOIN WAITLIST
